UNIARCH

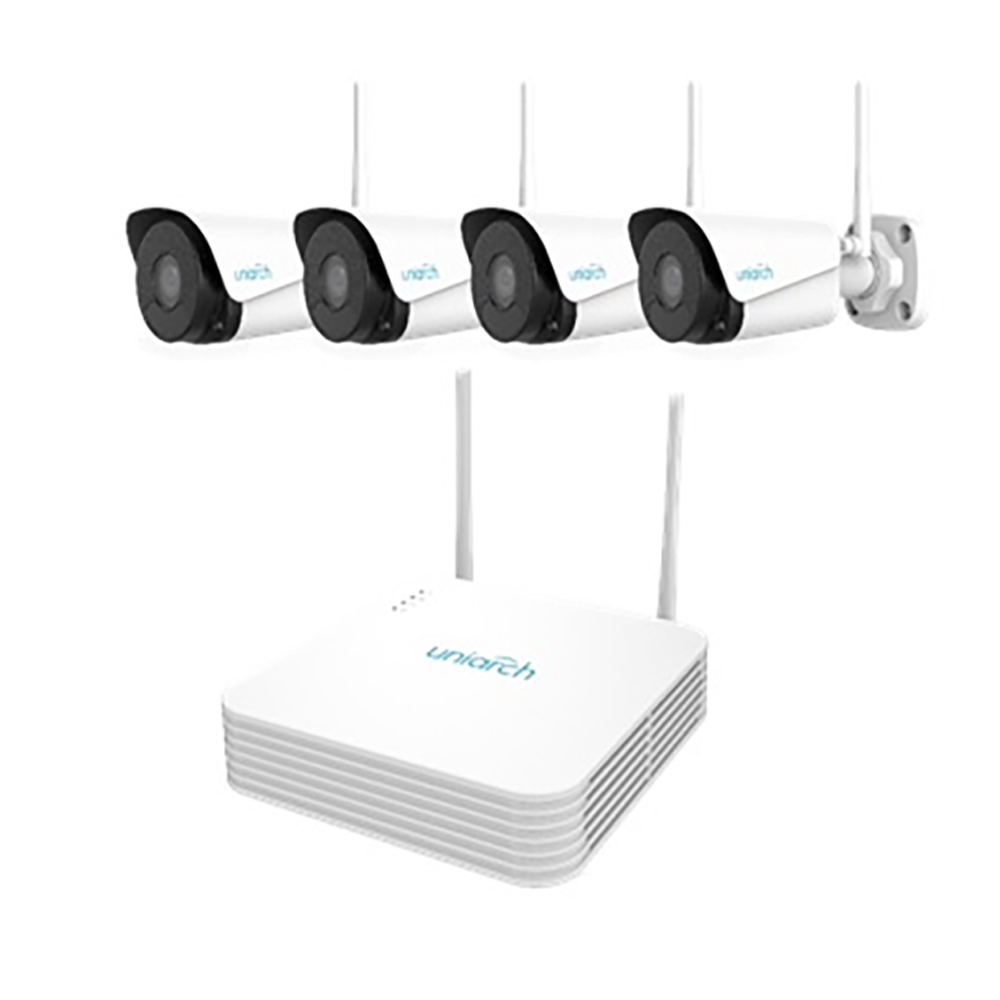

- KIT UNIARCH Wi-Fi (KIT-104LSW-4F40) 1x VIDEOREGISTRATORE NVR 4 CANALI Wi-Fi + 4x TELECAMERA BULLET IP Wi-Fi 2MP
|
!
!
Inserire una Quantità Valida
Inserire una Quantità Valida
|
KIT WIFI Uniarch 4 canali - Modello: KIT/NVR-104LS-W/4*IPC-B112-F40W
Nella confezione:
- 1 pz NVR 4 Canali UNIARCH, Recording 2MP, Uscita HDMI/VGA
- 4 pz Telecamere IP serie IPC-B112-F40W-I a 2MEGAPIXEL, Alimentazione 12Volt (NO POE)
Rete:
- Standard wireless: IEEE802.11b, 802.11g, 802.11n
- Protocolli: TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour
Immagine:
- Max. Risoluzione dell'immagine: 2 Megapixel
- Frequenza dei fotogrammi: 50 Hz: 20 fps (2560 1440), 25 fps (2304 1296, 1920 1080, 1280 720) 60 Hz: 20 fps (2560 1440), 30 fps (2304 1296, 1920 1080, 1280 720)
SPECIFICHE TECHICHE :
VIDEOREGISTRATORE
Model NVR-104LS-W
Video/Audio Input
IP Video Input 4-ch
Network
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 40Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 4-ch
Corridor Mode Screen 3/4
Decoding
Decoding format Ultra 265/H.265/H.264
Live view/ Playback 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080P@25
Hard Disk
SATA 1 SATA interface
Capacity Up to 10TB for each HDD
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel 2 x USB2.0
Wi-Fi
Frequency 2.4GHz
Transmission Rate 150Mbps
Wireless Standards IEEE 802.11b/g/n
Wireless Range 280m(open environment)
General
Power Supply 12V DC
Power Consumption: 9 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity 90% RH(non-condensing)
Dimensions(W D H) 205mm 205mm 46mm (8.1" 8.1" 1.8")
Weight ( without HDD )
0.58Kg(1.28lb)

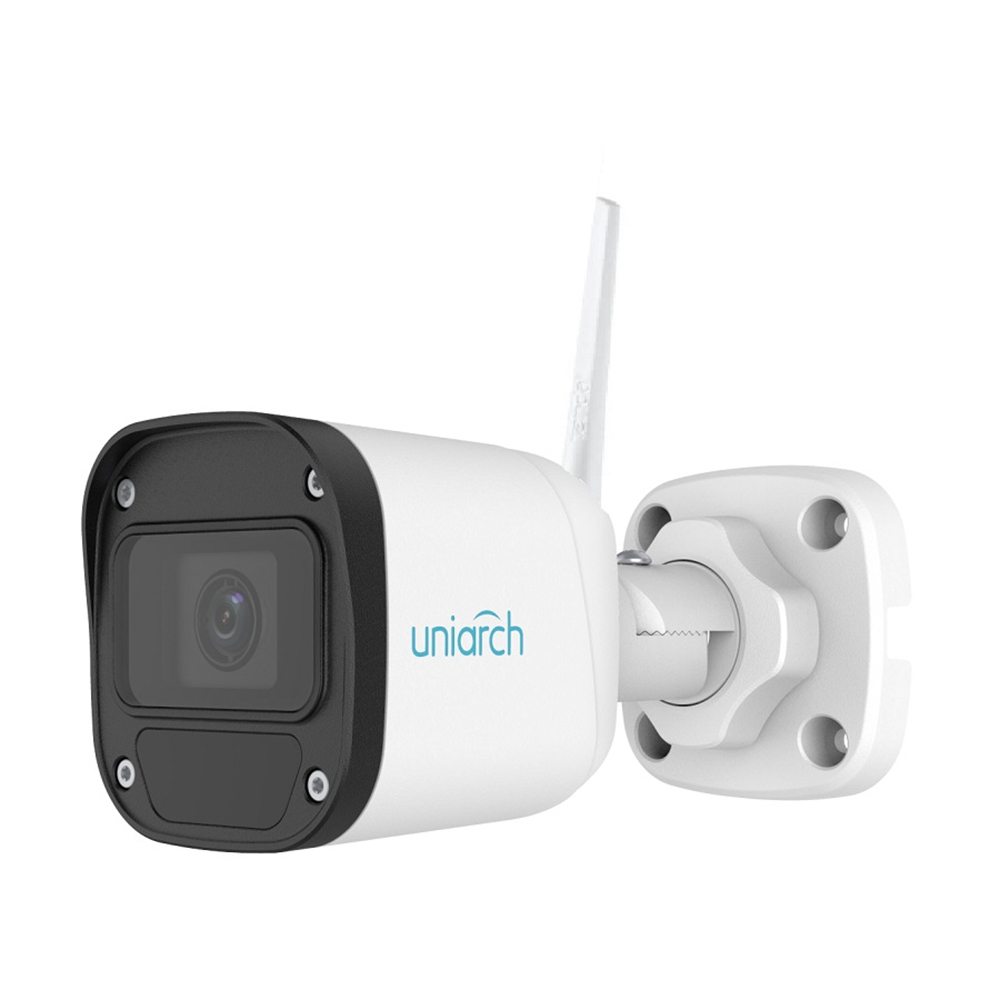

TELECAMERA BULLET
Model IPC-B112-F40W
Sensor 1/2.9", 2.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F2.0
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4mm 64.3 25.7 12.9 6.4
Angle of view(H) 82.0°
Angle of View (V) 41.4°
Angle of View (O) 100.9°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.02 Lux (F2.0 AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream:2MP (1920 1080): Max. 20 fps;
Sub Stream: 720P (1280 720): Max. 20 fps;
Video Bit Rate 128 Kbps~6 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping NA
HLC Supported
BLC Supported
Network
Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration ONVIF (Profile S, Profile T), API
Client EZStation
EZView
EZLive
Web Browser IE: IE8; IE9; IE11
Chrome
Firefox
Edge
Safari
Wi-Fi
Wireless Standards IEEE802.11b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20 MHz Support
Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Security 64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power 802.11b: 17 1.5dBm@11Mbps
802.11g: 14 1.5dBm@54Mbps
802.11n: 12.5 1.5dBm@150Mbps
Receive Sensitivity 802.11b: -90dBm@11Mbps (Typical)
802.11g: -75dBm@54Mbps (Typical)
802.11n: -74dBm@150Mbps (Typical)
Transmission Rate 802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE EN 60950-1:2006
UL UL60950-1
FCC FCC Part 15
General
Power DC 12V 25%
Power consumption: Max 4 W
Dimensions (L W H) 168.4 66.5 62.5mm (6.6 2.6 2.5 )
Weight 0.25 kg (0.55 lb)
Material Front cover metal
Body plastic
Bracket plastic
Bottom plate plastic
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity: 95% RH(non-condensing)
Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: 95% RH (non-condensing)
Ingress Protection IP67
Reset Button Supported
|
