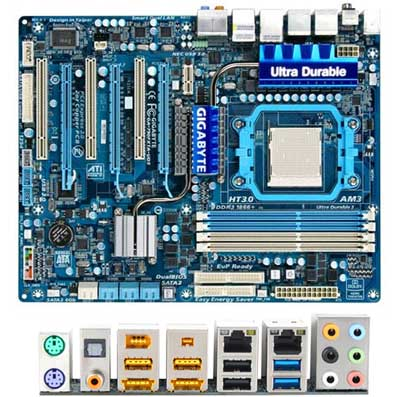

SCHEDA MADRE GIGABYTE GA-790FXTA-UD5 (REV 1.0.) AMD X2 X3 X4 SK-AM3

GA-790FXTA-UD5 questa scheda madre Gigabyte è stata progettata per supportare i processori AMD socket AM3 PhenomTIIAthlonTII. Dispone del chipset AMD 790FX e supporta memorie ddr3 fino a 1866 Mhz in OC. La scheda supporta i nuovi standard di interfacce USB 3.0 5 Gb / s tramite controller NEC e Sata III 6 Gb / s grazie al controller Marvell SE9128 di nuova generazione. 3 Slot PCI-E 16x per supporto alla tecnologia Multi-GPU ATI CrossfireX. Tecnologie proprietarie Gigabyte Ultra Durable 3 con dissipatori in rame per basse temperature di esercizio del sistema, DUAL-Bios per l'avvio del sistema in tutta sicurezza, 8+2 fasi di alimentazione per supporto di processori AMD con TDP a 140 Watt. (Disponibile su prenotazione in 15 gg lavorativi)


Specifiche
Processore Support for Socket AM3 processors: AMD PhenomT II processor / AMD AthlonT II processor

Chipset AMD 790FX
AMD SB750
iTE IT8720
Realtek ALC889 codec

Memoria Dual channel memory architecture
Support ECC Memory
DDR3:
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
DDR3 1866(OC)/1333/1066 MHz
Consultare la lista delle memorie supportate per maggiori informazioni.

LAN 2 x Realtek 8111D (10/100/1000 Mbit)
Support for Smart Dual LAN
Support for Teaming

Connettori Interni I/O 1 x 24-pin ATX power connector
1 x 8-pin ATX 12V power connector
1 x CD in
1 x clearing CMOS jumper
1 x clearing CMOS switch
1 x COM
1 x CPU fan connector
1 x FDD
1 x front audio connector
1 x front panel connector
1 x IDE
1 x IEEE 1394a
1 x LPT connector
1 x northbridge fan connector
1 x power fan connector
1 x power switch
1 x reset switch
1 x SPDIF in
1 x SPDIF out
2 x SATA 6Gb/s
2 x system fan headers
2 x USB 2.0/1.1
6 x SATA 3Gb/s

Slot di Espansione 1 x PCI Express x1
1 x PCI Express x16 slot, running at x8
2 x PCI Express x16 slots, running at x16
3 x PCI

Pannello Posteriore I/O 2 x eSATA/USB Combo connectors
2 x USB 3.0/2.0
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x SPDIF out (coaxial)
1 x SPDIF out (optical)
2 x IEEE 1394a
2 x RJ45 LAN
4 x USB 2.0/1.1
6 x audio ports (Line In / Line Out / MIC In / Surround Speaker Out(Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)

Fattore di Forma ATX
305mm x 244mm

Monitoraggio H/W CPU overheating warning
CPU/System fan failure warning
CPU/System fan speed control
CPU/System fan speed detect
CPU/System temperature detection
System voltage detection

BIOS 2 x 8 Mbit flash ROM
Licensed AWARDT BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Supports DualBIOST

Software in Bundle Norton Internet Security (OEM version)

Operating System Microsoft Windows 7/ Vista/ XP

Altre Caratteristiche @BIOST
Download Center
Q-FlashT
Support for Q-Share
Support for Time Repair
Supports EasyTune
Virtual Dual BIOS
XpressT Install
XpressT Recovery 2

Note Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website
Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.

Caratteristiche Esclusive Support for Easy Energy Saver
