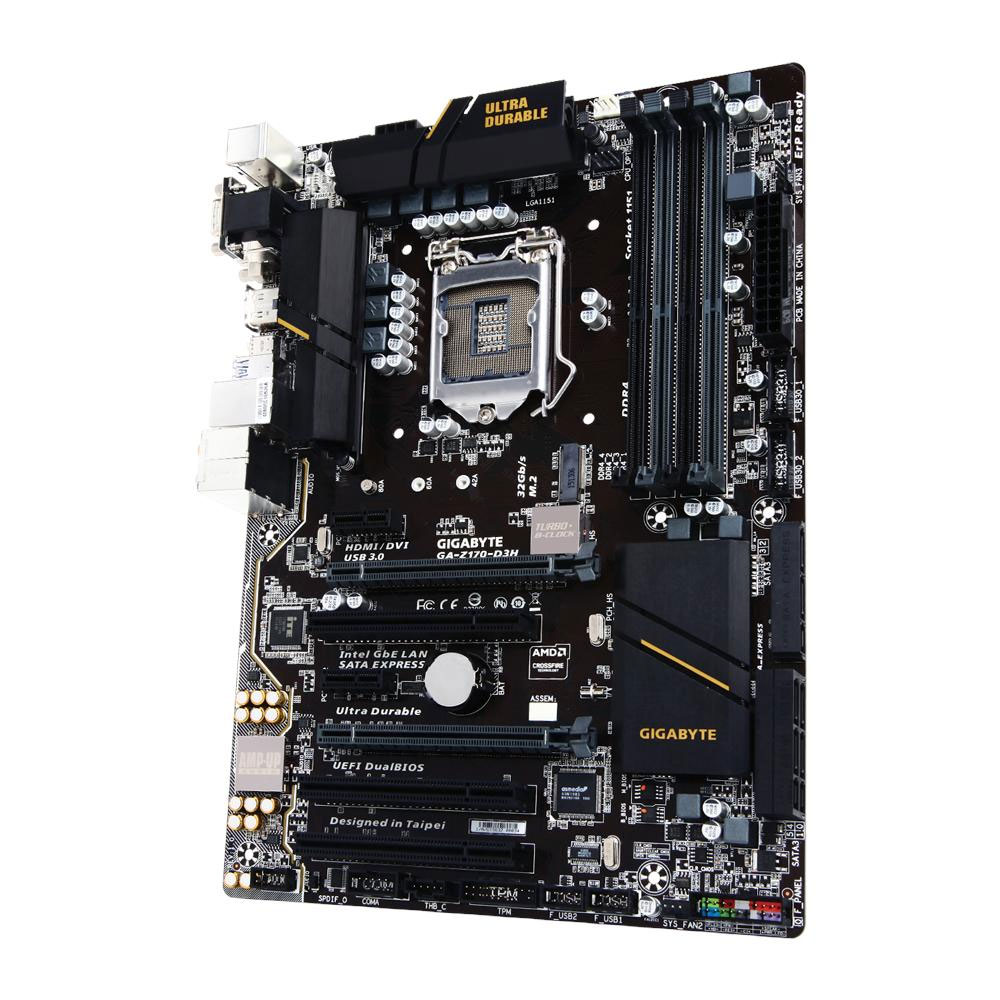

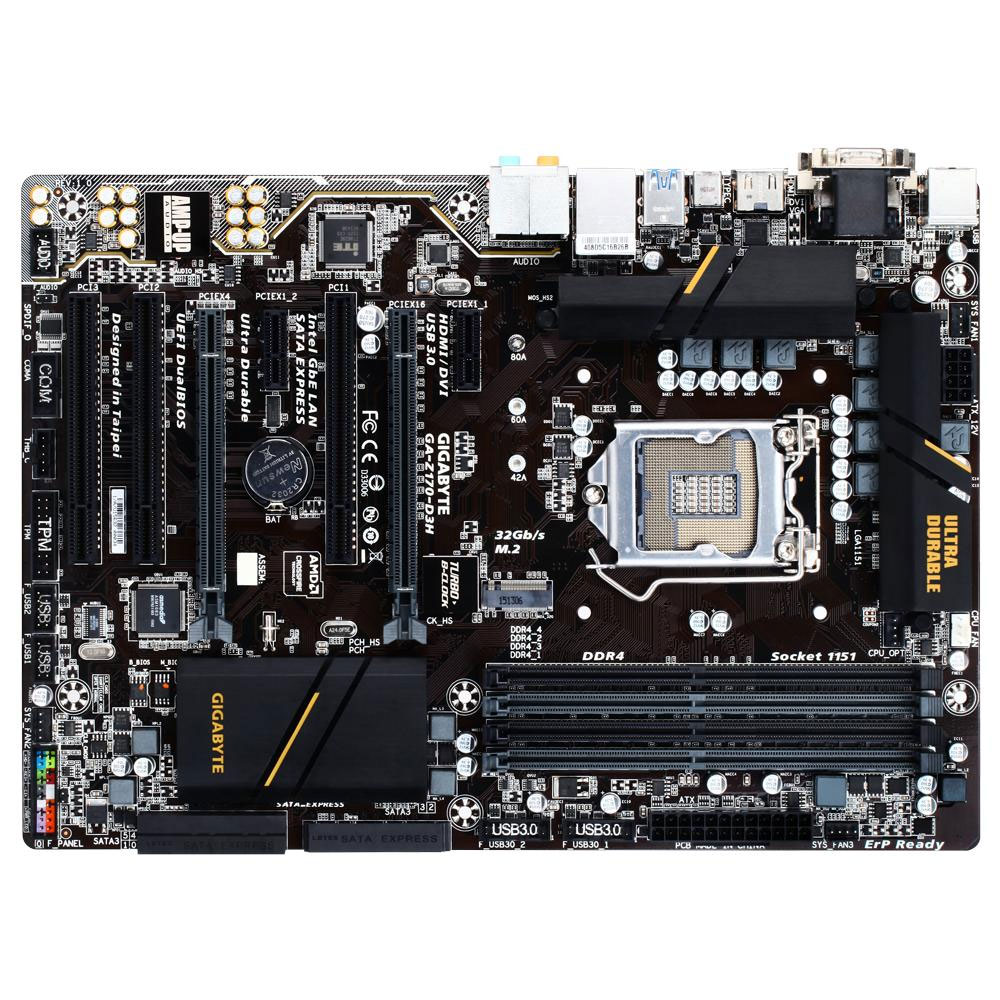

La scheda madre GA-Z170-D3H (rev. 1.0) di Gigabyte, in fattore di forma ATX, dispone del chipset Z170 compatibile con i processori Skylake su socket LGA 1151. La scheda supporta memorie DDR4, dual-channel, non-ECC, Unbuffered, fino ad un massimo di 64 GB con frequenze fino a 3466 MHz (OC) con supporto alla tecnologia Intel XMP. La scheda è certificata Ultra Durable garantisce quindi performance, efficienza e supporto alle più recenti tecnologie. GA-Z170-D3H (rev. 1.0 è studiata per offrire il massimo coinvolgimento in ambito Gaming, supporta la tecnologia multi-GPU AMD CrossFire, implementa la tecnologia GbE LAN con cFosSpeed che gestisce ina maniera automatica la priorità di banda della varie applicazioni, riduce la latenza e mantiene i livelli di ping estremamente bassi per un’esperienza multiplayer senza paragoni. Il comparto audio preamplificato consente di sfruttare a pieno la potenza dei propri headset per non farsi cogliere mai impreparati e anticipare le mosse dei propri avversari. Infine supporta l’applicazione Easy Tune di Gibayte per gestire tutti i parametri della scheda e ottimizzarla a seconda delle pro
CPU
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® Z170 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
4. Support for up to 3 displays at the same time
5. Maximum shared memory of 512 MB
Audio
1. Realtek® ALC1150 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 3 x PCI slots
Multi-Graphics Technology
1. Support for 2-Way AMD CrossFire™ technology
Storage Interface
Chipset:
1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2. 3 x SATA Express connectors
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
USB
Chipset:
1. 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
3. 1 x USB Type-C™ port on the back panel, with USB 3.0 support
?? Chipset+GENESYS LOGIC USB 2.0 Hub:
1. 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 3 x SATA Express connectors
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 1 x water cooling fan header (CPU_OPT)
8. 3 x system fan headers
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x S/PDIF Out header
12. 2 x USB 3.0/2.0 headers
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module (TPM) header
15. 1 x Thunderbolt™ add-in card connector
16. 1 x serial port header
17. 1 x Clear CMOS jumper

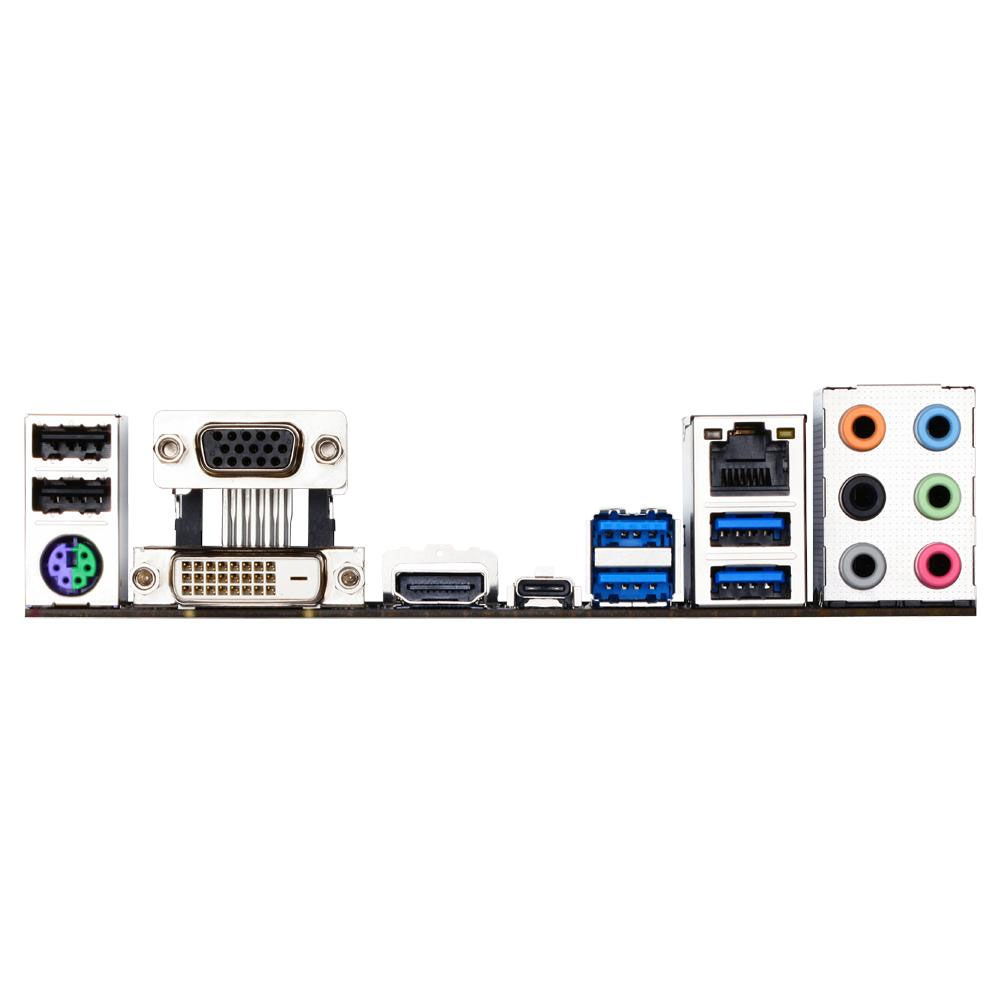

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 1 x USB Type-C™ port, with USB 3.0 support
6. 4 x USB 3.0/2.0 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. System voltage detection
2. CPU/System temperature detection
3. CPU/CPU OPT/System fan speed detection
4. CPU/System overheating warning
5. CPU/CPU OPT/System fan fail warning
6. CPU/CPU OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install
Bundle Software
1. Norton® Internet Security (OEM version)
2. Intel® Smart Response Technology
3. cFosSpeed
Operating System
1. Support for Windows 10/8.1 64-bit
2. Support for Windows 7 32-bit/64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
1. ATX Form Factor; 30.5cm x 21.4cm
Box Contents
1. GA-Z170-D3H motherboard
2. Two SATA cables
3. Motherboard driver disk
4. I/O Shield
5. User's Manual
6. One G Connector
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
