- SCHEDA MADRE GIGABYTE GA-890FXA-UD7 (REV 2.0.) AMD X2 X3 X4 SK-AM3
|
!
!
Inserire una Quantità Valida
Inserire una Quantità Valida
|

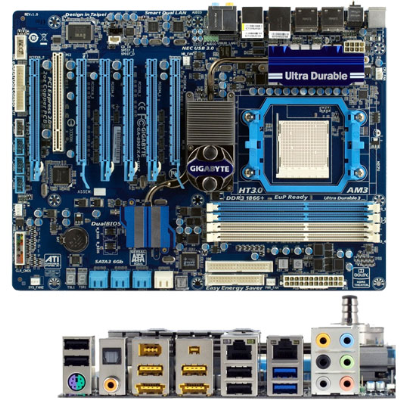

La scheda madre Gigabyte GA-890FXA-UD7 dispone del chipset AMD 890FX su socket AM3 per processori Athlon II e Phenom II, compresi i nuovi processori a 6 core Phenom II X6 con supporto a TDP 140 Watt grazie alle 8+2 fasi di alimentazione della scheda. La scheda supporta memorie ddr3 dual channel fino a 1866+ Mhz in O. C. , sei incredibili slot Pci-E 16x con supporto alla tecnologia ATI Quad-CrossfireX per schede grafiche ATI Radeon. La scheda supporta il nuovo standard di connessione multispeed USB 3.0 a 5 Gb / s grazie al controller NEC con 2 porte disponibili sul pannello posteriore. Sono supportate anche 6 porte native Sata III da 6 Gb / s con compatibilità RAID 0,1,5,10. Supporto Dolby Theater audio. La scheda integra tutte le tecnologie proprietarie di Gigabyte come Easy Energy Saver e Ultra Durable 3, rispettivamente per il risparmio energetico e per una maggior durabilità dei componenti.
Processore 1.Support for AM3 processors: AMD PhenomTII processor/ AMD AthlonTII processor
Hyper Transport Bus 1.5200 MT/s
Chipset 1.AMD 890FX
2.AMD SB850
Memoria 1.4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
2.Dual channel memory architecture
3.DDR3 2000(OC)/1333/1066 MHz
Audio 1.High Definition Audio
2.SPDIF In/Out connection
3.CD In connection
4.Realtek ALC889 codec
5.Support for Dolby Home Theater
6.2/4/5.1/7.1-channel
LAN 1.Support for Teaming
2.2 x Realtek 8111D (10/100/1000 Mbit)
3.Support for Smart Dual LAN
Slot di Espansione 1.2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2.2 x PCI Express x16 slot, running at x8 (PCIEX8_1/PCIEX8_2)
3.2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)(All PCI Express slots conform to PCI Express 2.0 Standard.)
4.1 x PCI
Multi Graphics Technology 1.Support for 2-way/ 3-way/ 4-way ATI CrossFireXT technology
Storage Interface South Bridge:
1.6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
2.Support for SATA RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
GIGABYTE SATA2 chip:
1.1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2.Support for SATA RAID 0, RAID 1 and JBOD
3.2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
JMicron JMB362 chip:
1.2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel sup- porting up to 2 SATA 3Gb/s devices
2.Support for SATA RAID 0, RAID 1 and JBOD
iTE IT8720 chip:
1.1 x floppy disk drive connector supporting up to 1 floppy disk drive
2.* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
USB NEC D720200F1 chip:
1.Up to 2 USB 3.0/2.0 ports on the back panel
South Bridge:
1.Up to 14 USB 2.0/1.1 ports (8 on the back panel, including 2 eSATA/USB Combo, 6 via the USB brackets connected to the internal USB headers)
2.* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
IEEE 1394 T.I. TSB43AB23 chip:
1.Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Connettori Interni I/O 1.2 x system fan headers
2.1 x front audio header
3.1 x IEEE 1394a
4.3 x USB 2.0/1.1
5.1 x serial port
6.1 x clearing CMOS jumper
7.1 x CPU fan header
8.1 x front panel header
9.1 x parallel port header
10.1 x power button
11.1 x reset button
12.6 x SATA 6Gb/s
13.1 x clearing CMOS button
14.1 x CD in
15.1 x 24-pin ATX power connector
16.1 x SPDIF out
17.1 x floppy disk drive connector
18.1 x IDE
19.1 x power fan connector
20.1 x northbridge fan connector
21.1 x 8-pin ATX 12V power connector
22.1 x SPDIF in
23.2 x SATA 3Gb/s
Pannello Posteriore I/O 1.6 x USB 2.0/1.1
2.2 x IEEE 1394a
3.1 x PS/2 keyboard or PS/2 mouse port
4.2 x eSATA/USB Combo connectors
5.2 x USB 3.0/2.0
6.2 x RJ45 LAN
7.6 x audio ports (Line In / Line Out / MIC In / Surround Speaker Out(Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)
8.1 x SPDIF out (coaxial)
9.1 x SPDIF out (optical)
I/O Controller 1.iTE IT8720
Monitoraggio H/W 1.CPU/System fan speed detect
2.CPU/System fan speed control
3.CPU/System fan failure warning
4.CPU/System temperature detection
5.System voltage detection
6.CPU overheating warning
BIOS 1.Supports DualBIOST
2.2 x 8 Mbit flash ROM
3.PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
4.Use of licensed AWARD BIOS
Altre Caratteristiche 1.Support for Q-Share
2.Smart Recovery
3.Auto Green
4.Q-FlashT
5.Download Center
6.XpressT Install
7.XpressT Recovery 2
8.Supports EasyTune
9.@BIOST
10.XpressT BIOS Rescue
11.Support for Easy Energy Saver
12.Support for On/Off Charge
Software in Bundle 1.Norton Internet Security (OEM version)
Operating System 1.Microsoft Windows 7/ Vista/ XP
Fattore di Forma 1.XL-ATX Form Factor; 32.5cm x 24.4cm
Note 1.The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8_1/ PCIEX8_2 is populated.
2.Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
3.Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
4.Available functions in EasyTune may differ by motherboard model.
5.The default bandwidth for the PCIEX4_2 slot is x1. When it is configured to x4 mode, the onboard GSATA2_6, GSATA2_7, and IDE connectors will become unavailable because they share bandwidth with the PCIEX4_2 slot. (Refer to Chapter 2, "Integrated Peripherals" in manual for how to change the operating bandwidth for the PCIEX4_2 slot.)
|
