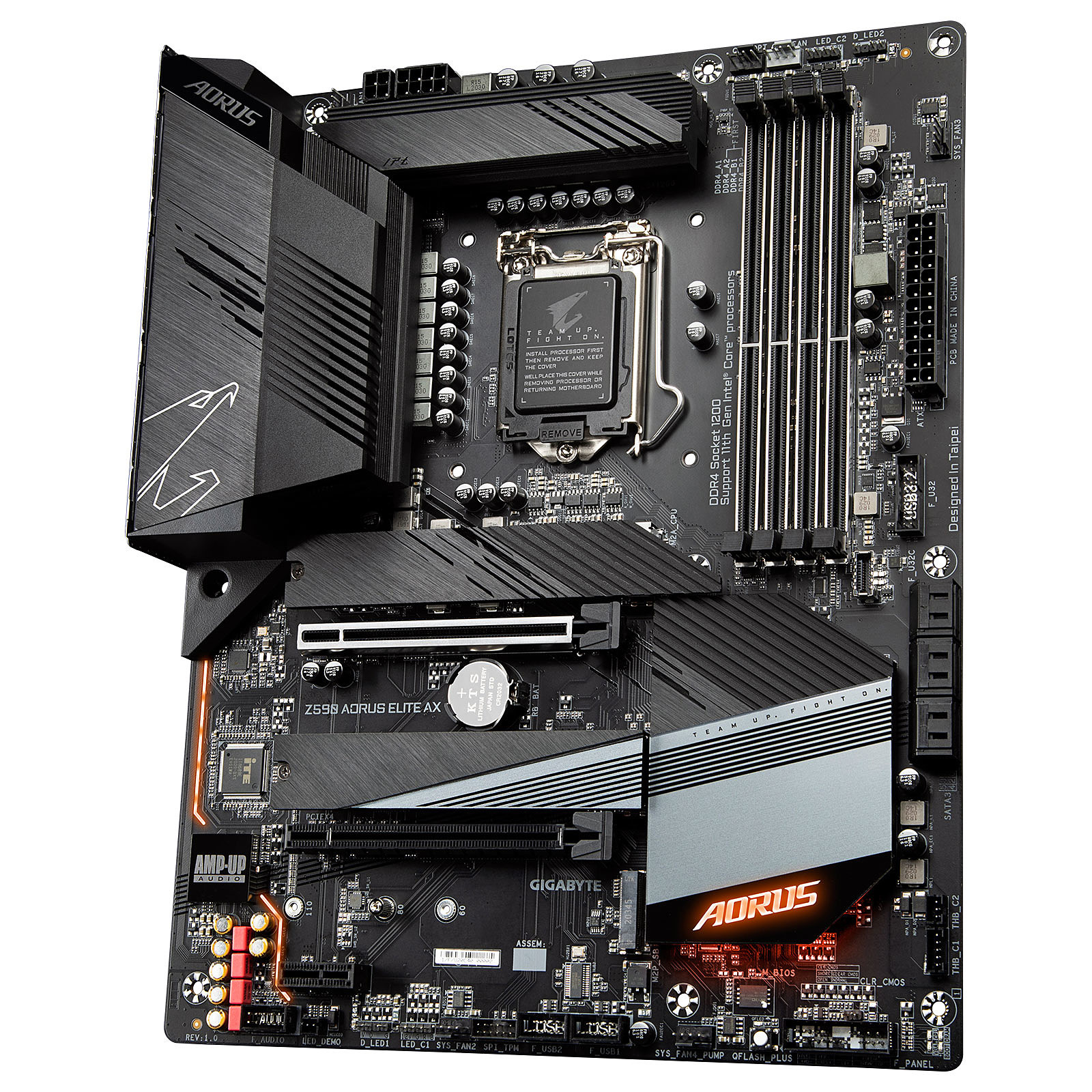

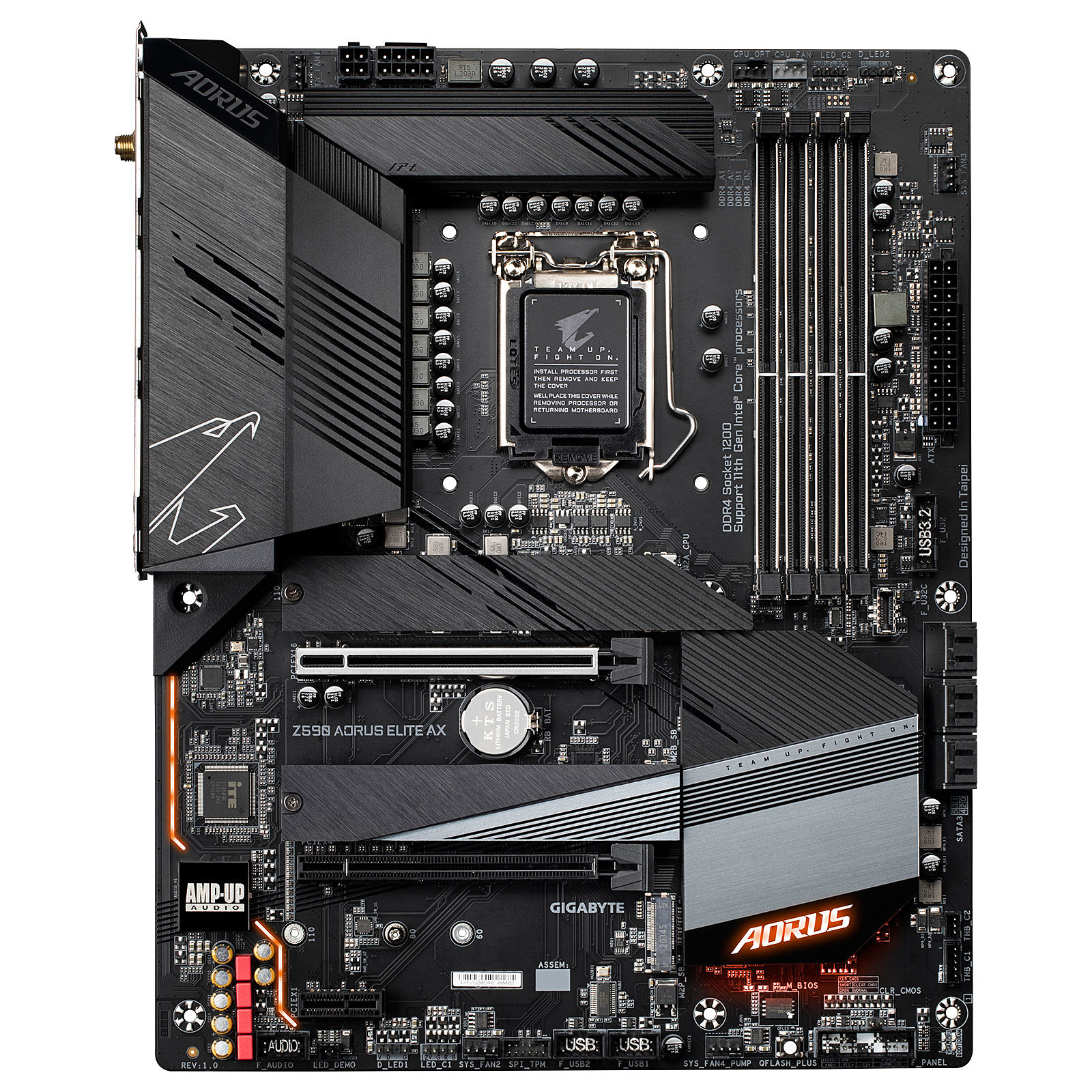

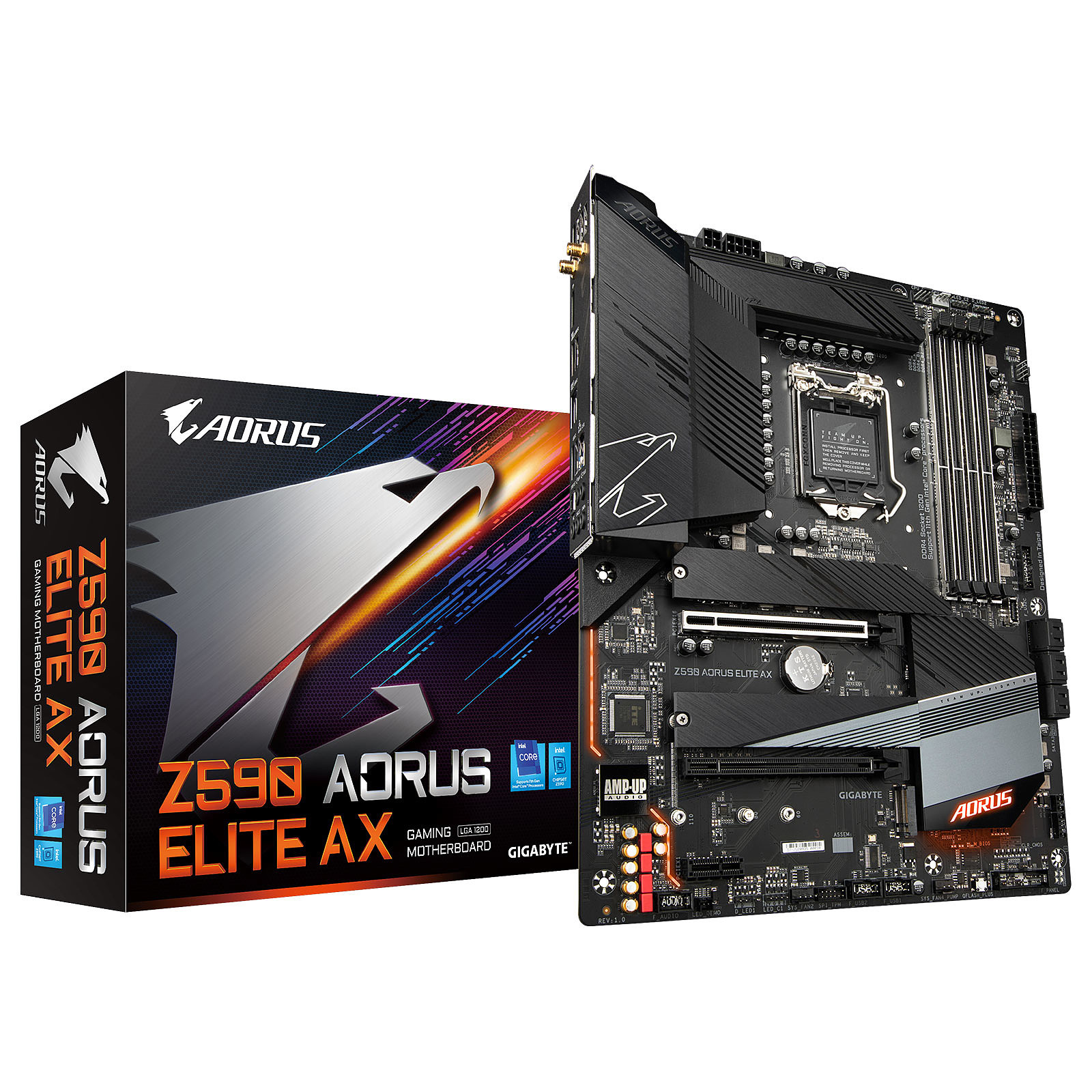

- SCHEDA MADRE GIGABYTE INTEL Z590 AORUS ELITE AX (rev. 1.0) DDR4 Core i3/i5/i7/i9 10°/11° GENERAZIONE 4xDDR4 3xPci-E 4.0x16, 1xDisplayPort, 6xSATA 6Gb/S, 3xM.2 PCIe 4.0, SK-1200
|
!
!
Inserire una Quantità Valida
Inserire una Quantità Valida
|
La scheda madre Gigabyte Z590 AORUS ELITE AX è progettata per ospitare processori Intel di decima e undicesima generazione su socket LGA 1200. Permetterà l'assemblaggio di una potente configurazione di gioco con un look unico. Gioco, streaming, multitasking intensivo, creazione multimediale, è la soluzione ideale per progettare un PC di fascia alta con alte prestazioni. Supporta anche RAM DDR4, schede grafiche PCI-Express 4.0 16x, unità SATA 6 Gb/s e M.2 PCIe 4.0 e periferiche USB 3.1 e USB 3.2.
- Supporto per i processori Intel Core di decima e undicesima generazione su socket LGA 1200
- Compatibile con Intel Optane
- VRAM 12+1 Fase Diretta con 60A DrMOS
- Intel WiFi 6 802.11ax 2T2R & BT 5.1 con antenne AORUS
- LAN Intel 2.5GbE
- NVMe PCIe M.2 con protezione termica
- RGB FUSION 2.0 compatibile con LED indirizzabili e strisce LED RGB
- Smart Fan 6 che include sensori di temperatura multipli, intestazioni Hybrid Fan con FAN STOP
- Q-Flash Plus per l'aggiornamento del BIOS senza CPU, memoria o schede grafiche
PROCESSORE INTEL CORE DI 11 GENERAZIONE
Il processore Intel Core Rocket Lake-S di 11 generazione ti spinge verso una potenza ancora maggiore con la sua compatibilità PCI-Express 4. 0 e la presenza dell'Hyper Threading su tutta la gamma dal Core i3 al Core i9. Le sue frequenze Turbo vanno sempre più in alto pur mantenendo lo stesso TDP delle generazioni precedenti. Prestazioni di picco e fluidità sono all'ordine del giorno per tutti, sia per l'ufficio che per l'uso creativo o di gioco.
Processore
LGA1200 package:
11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
La Cache L3 varia da CPU a CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel Z590 Express Chipset
Memoria
11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3 /Pentium /Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Architettura di memoria a doppio canale
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Supporta le memorie dotate di Profilo XMP
((Per maggiori informazioni fare riferimento alla Lista di memorie compatibili))
Grafica integrata
Integrated Graphics Processor - Intel HD Graphics support
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Audio ad alta definizione
Audio a 2/4/5.1/7.1 canali
Supporta uscite S/PDIF
LAN
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel Wi-Fi 6 AX201
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Slot di Espansione
1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
1 x Slot PCI Express x16, funzionante a x4 (PCIEX4)
1 x PCI Express x1 slot
(PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Interfaccia di storage
CPU
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
* Supported by 11th Generation processors only.
Chipset
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
Tecnologia Multi GPU
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
USB
Chipset+2 USB 2.0 Hubs
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Connettori Interni I/O
1 Connettore di Alimentazione ATX a 24-pin
1 Connettore di Alimentazione ATX ad 8-pin
1 x 4-pin ATX 12V power connector
1 Connettore per Ventola della CPU
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x Addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 Connettore per Pannello Frontale
1 Connettore per uscite Audio Frontali
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x Connettori USB 2.0/1.1
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
La funzione TPM è opzionale in base alla regolamentazione dei vari stati
1 x Clear CMOS jumper
1 x Q-Flash Plus button
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

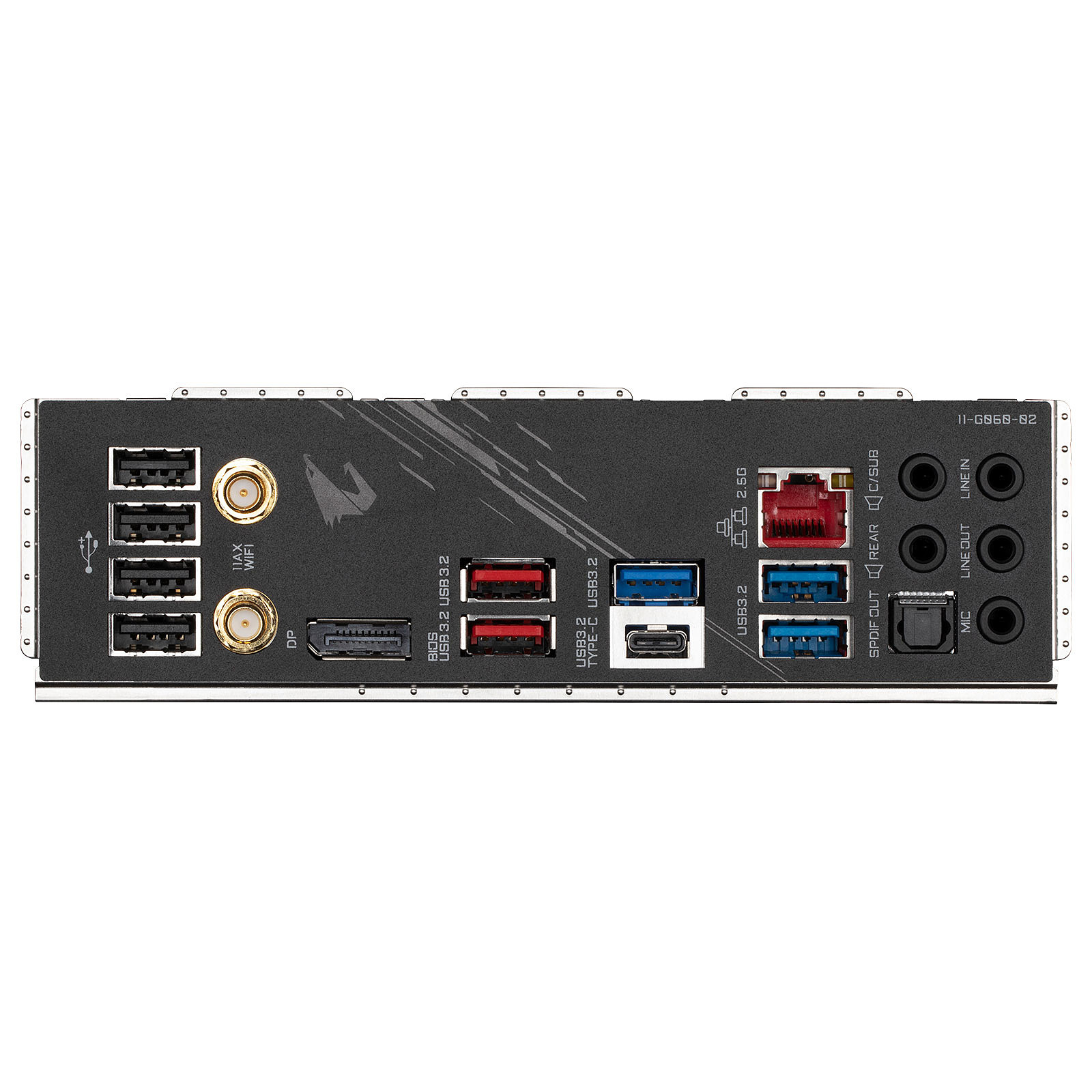

Pannello Posteriore I/O
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 Porta RJ-45
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller
iTE I/O Controller Chip
Monitoraggio H/W
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Altre Caratteristiche
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@ BIOS
EasyTune
Fast Boot
Game Boost
Supporto alla tecnologia ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Supporta il Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
Realtek 8125 Gaming LAN Bandwidth Control Utility
Sistema Operativo
Support for Windows 10 64-bit
Caratteristiche Fisiche
ATX Form Factor; 30.5cm x 24.4cm
|
